W10-06 10 Inches distortion-free sound car subwoofers

Continuous Power Handling：300W

Nominal Power Handling：150 W

Thin, high-strengthsteel basin frame
49.5MM (2inch) voice coil
Ferrite 450Z
PC spider
40-1500 Hz Frequency Range

87 dB sensitivity
This W10-06 10-inch distortion-free audio car subwoofer adopts advanced audio technology and has excellent sound quality performance. Its woofer unit is capable of maintaining a clear, precise low-frequency response at high volumes without noticeable distortion, giving you truer, deeper music enjoyment. No distortion is a great feature of this subwoofer. It adopts an optimized speaker design and efficient power management, which can maintain stable sound quality at high volume output without obvious sound distortion. This means you can enjoy the bass impact at high volume without worrying about loss of sound quality.

W10-06 10 Inches distortion-free sound car subwoofers

Details & specifications

Construction

SPECIFICATIONS

NominaI Diameter	250MM(10")	Nominal Impedance	Double 4Ω
Nominal Power Handling	150W	Continuous Power Handling	300W
Sensitivity	87 dB	Winding Material	Copper
Former Material	Black aluminum	Winding Depth	22 mm (0.866 in)
Magnetic Gap Depth	6.0 mm (0.236 in)	Flux Density	1.1 T

DESIGN

Surround Shape	Foam edge	Cone Shape	linear type
Magnet Material	Ferrite	Spider	PC spider

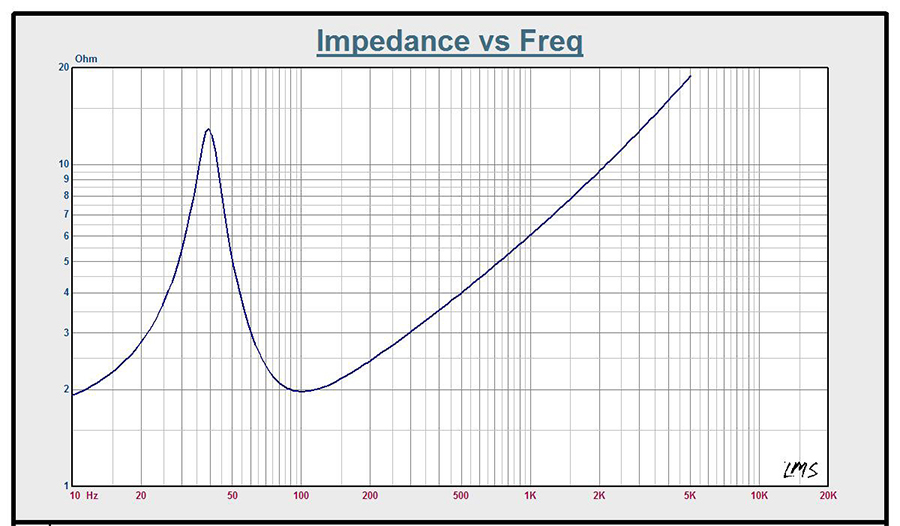

PARAMETERS

Resonance Frequency	39.515Hz	Re	3.2 Ω+3.2 Ω
Qes	0.652	Qms	4.592
Qts	0.571	Vas	46.677 litre
Sd	346.361 cm2	η。	0.427 %
Xmax	13.7 MM	Mms	59.206g
Bl	8.175 Txm

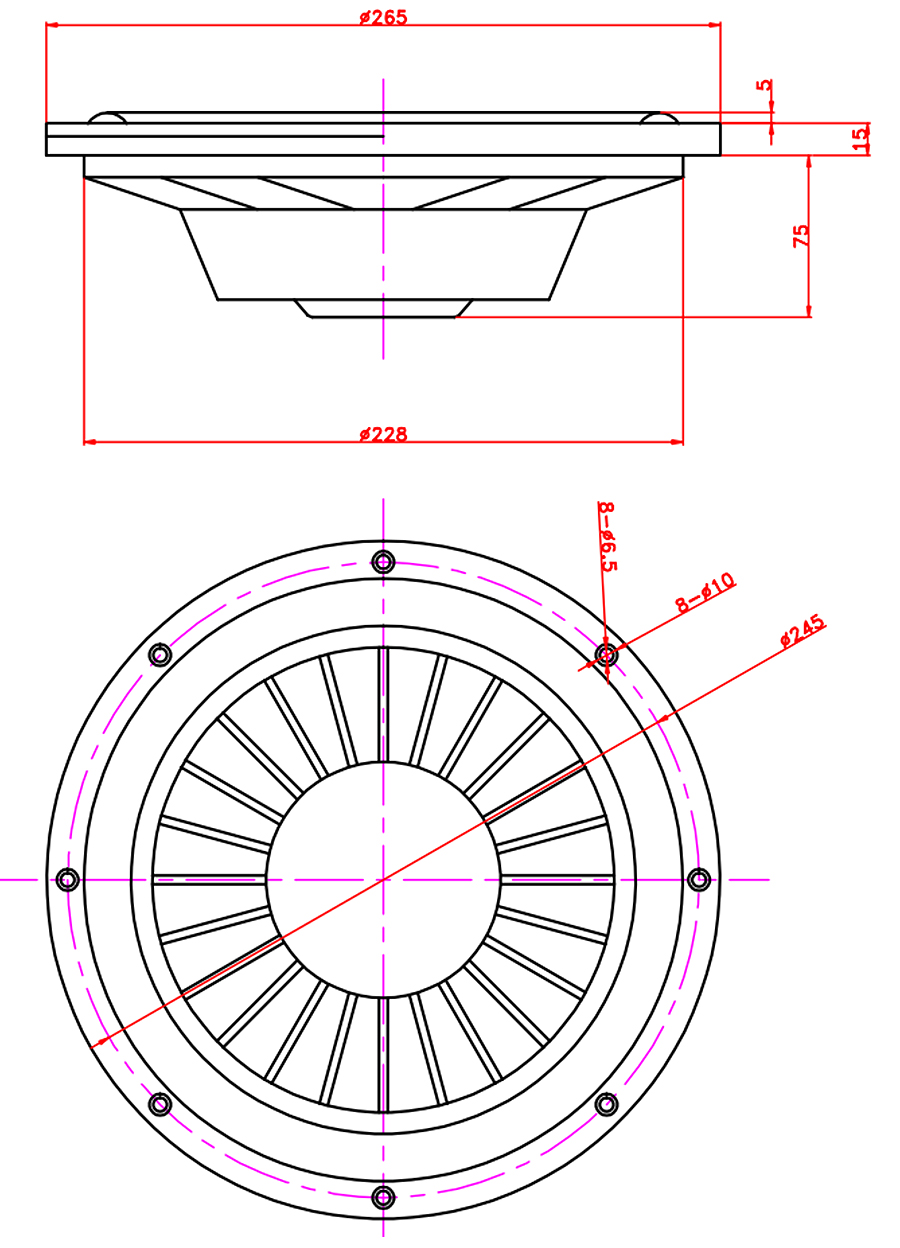

MOUNTING AND SHIPPING INFO

Overall Diameter	265 mm (10.43 in)	Bolt Circle Diameter	245 mm (9.64 in)
Baffle Cutout Diameter	228.0mm(8.97 in)	Depth	75 mm (2.95 in)
Flange and GasketThickness	16 mm (0.63in)	Net Weight	3.3 kg
Shipping Units	4	Shipping Weight	15.0 kg
Shipping Box	595x310x270mm (23.43x12.2x10.63 in)
