W12-01 12.0 Inches High Strength Steelbasin Car Subwoofers

Continuous Power Handling:1600W
Nominal Power Handling:800W
High strength steelbasin frame
75.5MM (3inch) voice coil
Ferrite 165 OZ
double PC spider
30-1200 Hz Frequency Range
87.5 dB sensitivity
W12-01 12.0-inch high-strength steel basin car subwoofer is an excellent audio equipment specially designed for car audio enthusiasts. One of its characteristics is the use of high-strength steel cone material, which not only ensures the structure of the subwoofer is durable, but also effectively reduces resonance and distortion, thereby providing clear and deep bass. This design not only brings higher stability to the sound system, but also makes the sound performance better.
The 12.0-inch high-strength steel basin car subwoofer not only excels in sound quality, but also has advantages in terms of installation and adaptability. Its modest size and design make it easy to embed in the audio system of a car, whether it is a small car or an SUV, it can find a suitable installation position.

Details & specifications

  • Construction
SPECIFICATIONS
NominaI Diameter 300MM(12") Nominal Impedance Double 4Ω
Nominal Power Handling 800W Continuous Power Handling 1600W
Sensitivity 87.5 dB Winding Material Copper
Former Material Black aluminum Winding Depth 35 mm (1.4 in)
Magnetic Gap Depth 10.0 mm (0.393 in) Flux Density 0.98 T
DESIGN
Surround Shape Big bubble with tendons Cone Shape linear type
Magnet Material Ferrite Spider   double PC spider

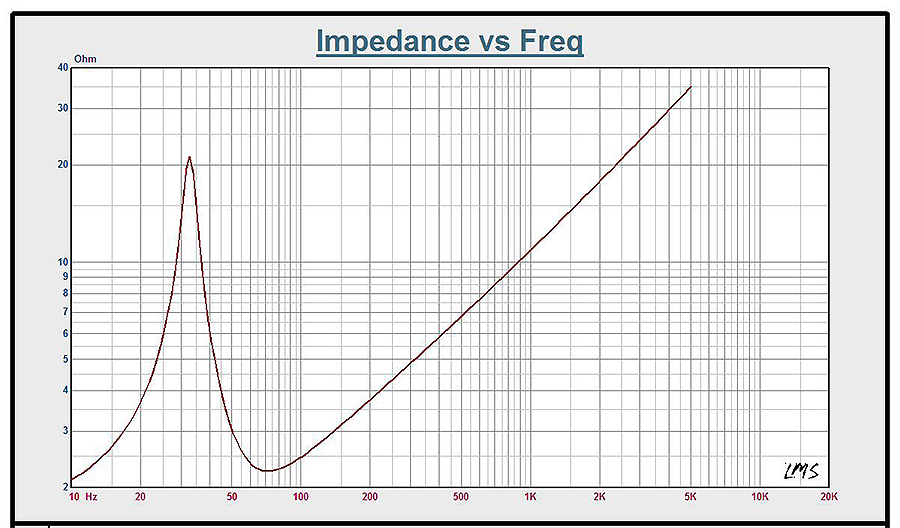

PARAMETERS
Resonance Frequency  32.763Hz Re 3.2 Ω+3.2 Ω
Qes 0.622 Qms 7.545
Qts 0.575 Vas 64.464 litre
Sd 490.874 cm2 η。 0.352 %
Xmax 15.8 MM Mms 125.253 g
Bl  8.142 Txm

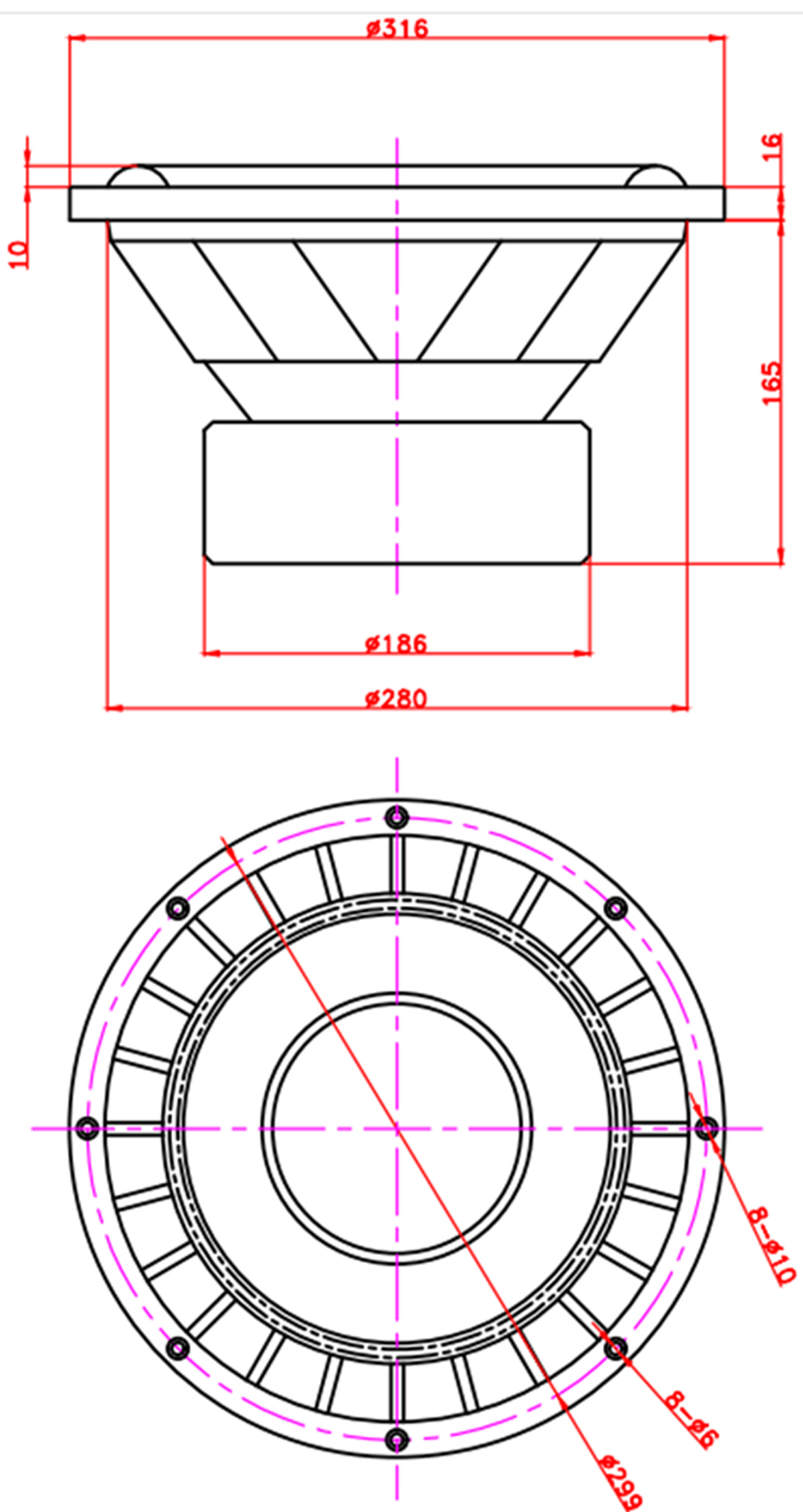

MOUNTING AND SHIPPING INFO
Overall Diameter  316 mm (12.45 in) Bolt Circle Diameter 299 mm (11.78 in)
Baffle Cutout Diameter 280.0mm(11.02 in) Depth 165 mm (6.49 in)
Flange and GasketThickness 16 mm (0.63in) Net Weight 11.5 kg(25.3lb)
Shipping Units 1 Shipping Weight  13.2 kg (30.2 Ib)
Shipping Box 350x350x245 mm (13.78x13.78x9.65 in)
