SPECIFICATIONS
| NominaI Diameter |
300MM(12") |
Nominal Impedance |
Double 2Ω |
| Nominal Power Handling |
2000W |
Continuous Power Handling |
4000W |
| Sensitivity |
88 dB |
Winding Material |
Copper |
| Former Material |
Black aluminum |
Winding Depth |
36 mm (1.4 in) |
| Magnetic Gap Depth |
12.0 mm (0.395 in) |
Flux Density |
0.90 T |
DESIGN
| Surround Shape |
Narrow high foam edge |
Cone Shape |
linear type |
| Magnet Material |
Ferrite |
Spider |
double PC spider |
PARAMETERS
| Resonance Frequency |
32.763 Hz |
Re |
2 Ω+2 Ω |
| Qes |
0.510 |
Qms |
6.412 |
| Qts |
0.472 |
Vas |
26.104 litre |
| Sd |
530.930 cm2 |
η。 |
0.488 % |
| Xmax |
16 MM |
Mms |
182.034 g |
| Bl |
10.178 Txm |
|
|

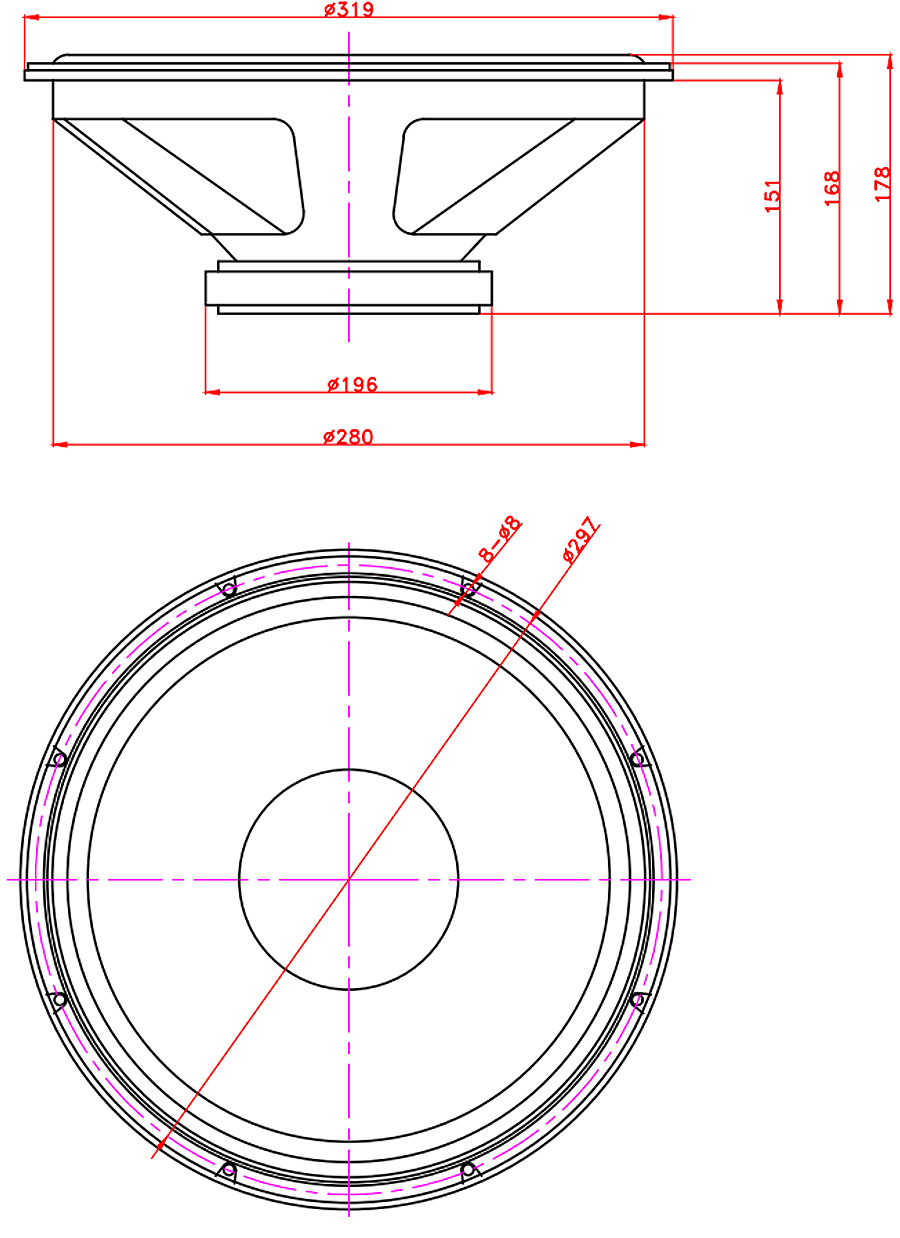

MOUNTING AND SHIPPING INFO
| Overall Diameter |
319 mm (12.48 in) |
Bolt Circle Diameter |
297 mm (11.77 in) |
| Baffle Cutout Diameter |
280.0mm(11.02 in) |
Depth |
151 mm (5.94 in) |
| Flange and GasketThickness |
16 mm (0.63in) |
Net Weight |
13.2 kg(30.2 lb) |
| Shipping Units |
1 |
Shipping Weight |
13.2 kg (30.2 Ib) |
| Shipping Box |
360x360x230 mm (14.17x14.17x9.06 in) |
|
|
