Custom W12-29 12.0 Inches car subwoofers Suppliers, OEM/ODM Company

W12-29 12.0 Inches car subwoofers

Continuous Power Handling：1200W
Nominal Power Handling：600W
High strength steelbasin frame
63.8MM (2.5inch) voice coil
Ferrite 76 OZ
PC spider
45-1200 Hz Frequency Range
86 dB sensitivity

Details & specifications

Construction

SPECIFICATIONS

NominaI Diameter	300MM(12")	Nominal Impedance	Double 4Ω
Nominal Power Handling	600W	Continuous Power Handling	1200W
Sensitivity	86 dB	Winding Material	Copper
Former Material	Black aluminum	Winding Depth	30 mm (1.18 in)
Magnetic Gap Depth	8.0 mm (0.315 in)	Flux Density	0.90 T

DESIGN

Surround Shape	Narrow high foam edge	Cone Shape	linear type
Magnet Material	Ferrite	Spider	PC spider

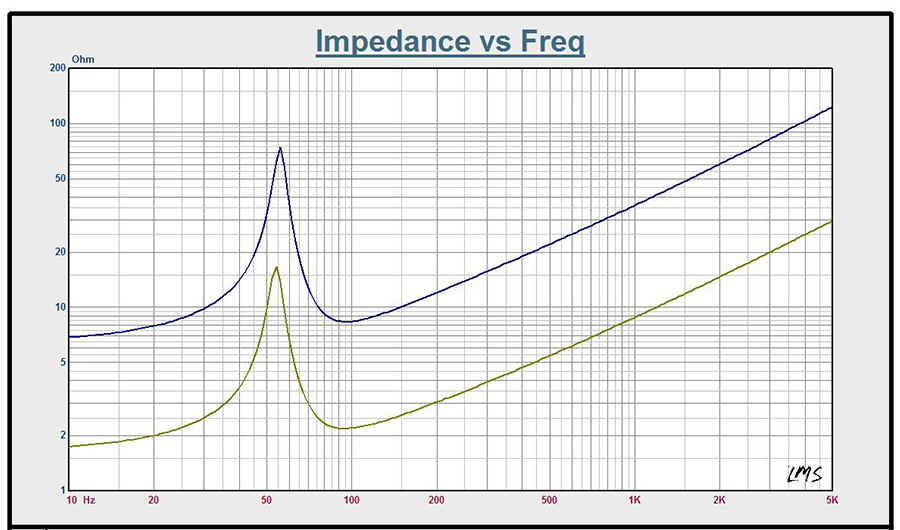

PARAMETERS

Resonance Frequency	53.999 Hz	Re	3.2 Ω+3.2 Ω
Qes	1.107	Qms	10.187
Qts	0.988	Vas	21.815 litre
Sd	490.87 cm²	η。	0.300 %
Xmax	13.7 MM	Mms	136.253 g
Bl	8.175 Txm

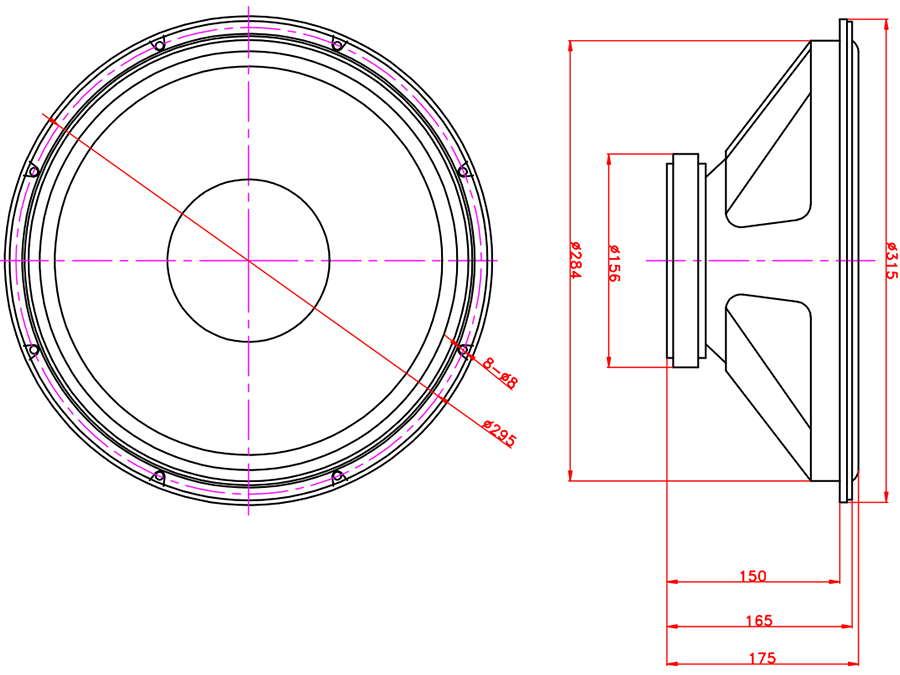

MOUNTING AND SHIPPING INFO

Overall Diameter	315 mm (12.4 in)	Bolt Circle Diameter	295 mm (11.61 in)
Baffle Cutout Diameter	284.0mm(11.18 in)	Depth	150 mm (5.9 in)
Flange and GasketThickness	16 mm (0.63in)	Net Weight	5.7 kg(30.2 lb)
Shipping Units	1	Shipping Weight	13.55 kg
Shipping Box	350x350x430 mm (13.78x13.78x16.93 in)

We are a speaker manufacturer .

Shengzhou Lianfeng Electronic is a combination of industry and trade enterprises, located in China's famous loudspeaker accessories production base "Shengzhou", our company was founded in 2001 and is famous W12-29 12.0 Inches car subwoofers suppliers and custom W12-29 12.0 Inches car subwoofers company, specializing in the production of OEM/ODM W12-29 12.0 Inches car subwoofers and so on. in addition, we can produce products according to your special requirements.
