SPECIFICATIONS
| NominaI Diameter |
300MM(12") |
Nominal Impedance |
Double 4Ω |
| Nominal Power Handling |
180W |
Continuous Power Handling |
360W |
| Sensitivity |
87 dB |
Winding Material |
Copper |
| Former Material |
Black aluminum |
Winding Depth |
22 mm (0.866 in) |
| Magnetic Gap Depth |
6.0 mm (0.236 in) |
Flux Density |
1.1 T |
DESIGN
| Surround Shape |
Narrow high foam edge |
Cone Shape |
linear type |
| Magnet Material |
Ferrite |
Spider |
PC spider |
PARAMETERS
| Resonance Frequency |
35.325 Hz |
Re |
3.2 Ω+3.2 Ω |
| Qes |
1.107 |
Qms |
10.187 |
| Qts |
0.988 |
Vas |
21.815 litre |
| Sd |
490.87 cm2 |
η。 |
0.300 % |
| Xmax |
13.7 MM |
Mms |
136.253 g |
| Bl |
8.175 Txm |
|
|

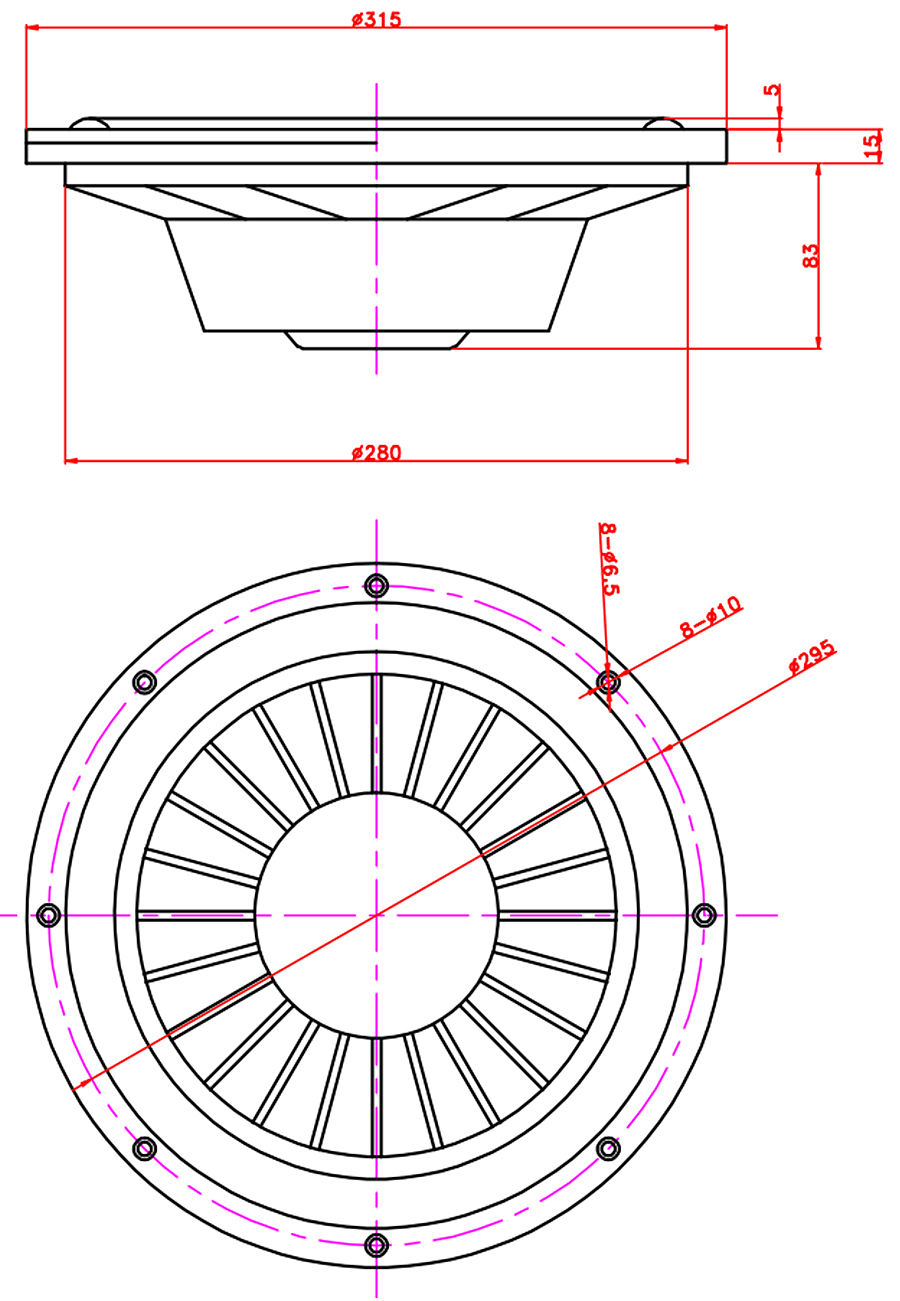

MOUNTING AND SHIPPING INFO
| Overall Diameter |
315 mm (12.4 in) |
Bolt Circle Diameter |
295 mm (11.61 in) |
| Baffle Cutout Diameter |
284.0mm(11.02 in) |
Depth |
75 mm (2.95 in) |
| Flange and GasketThickness |
16 mm (0.63in) |
Net Weight |
3.5 kg |
| Shipping Units |
4 |
Shipping Weight |
15.55 kg |
| Shipping Box |
690x360x270 mm (27.17x14.17x10.63 in) |
|
|
