SPECIFICATIONS
| NominaI Diameter |
380MM(15") |
Nominal Impedance |
Double 4Ω |
| Nominal Power Handling |
900W |
Continuous Power Handling |
1800W |
| Sensitivity |
89 dB |
Winding Material |
Copper |
| Former Material |
Black aluminum |
Winding Depth |
35 mm (1.4 in) |
| Magnetic Gap Depth |
10.0 mm (0.393 in) |
Flux Density |
0.98 T |
DESIGN
| Surround Shape |
Big bubble with tendons |
Cone Shape |
linear type |
| Magnet Material |
Ferrite |
Spider |
double PC spider |
PARAMETERS
| Resonance Frequency |
31.755 Hz |
Re |
3.2 Ω+3.2 Ω |
| Qes |
0.802 |
Qms |
7.927 |
| Qts |
0.732 |
Vas |
163.714 litre |
| Sd |
855.299 cm2 |
η。 |
0.629 % |
| Xmax |
15.8 MM |
Mms |
159.833 g |
| Bl |
7.944 Txm |
|
|

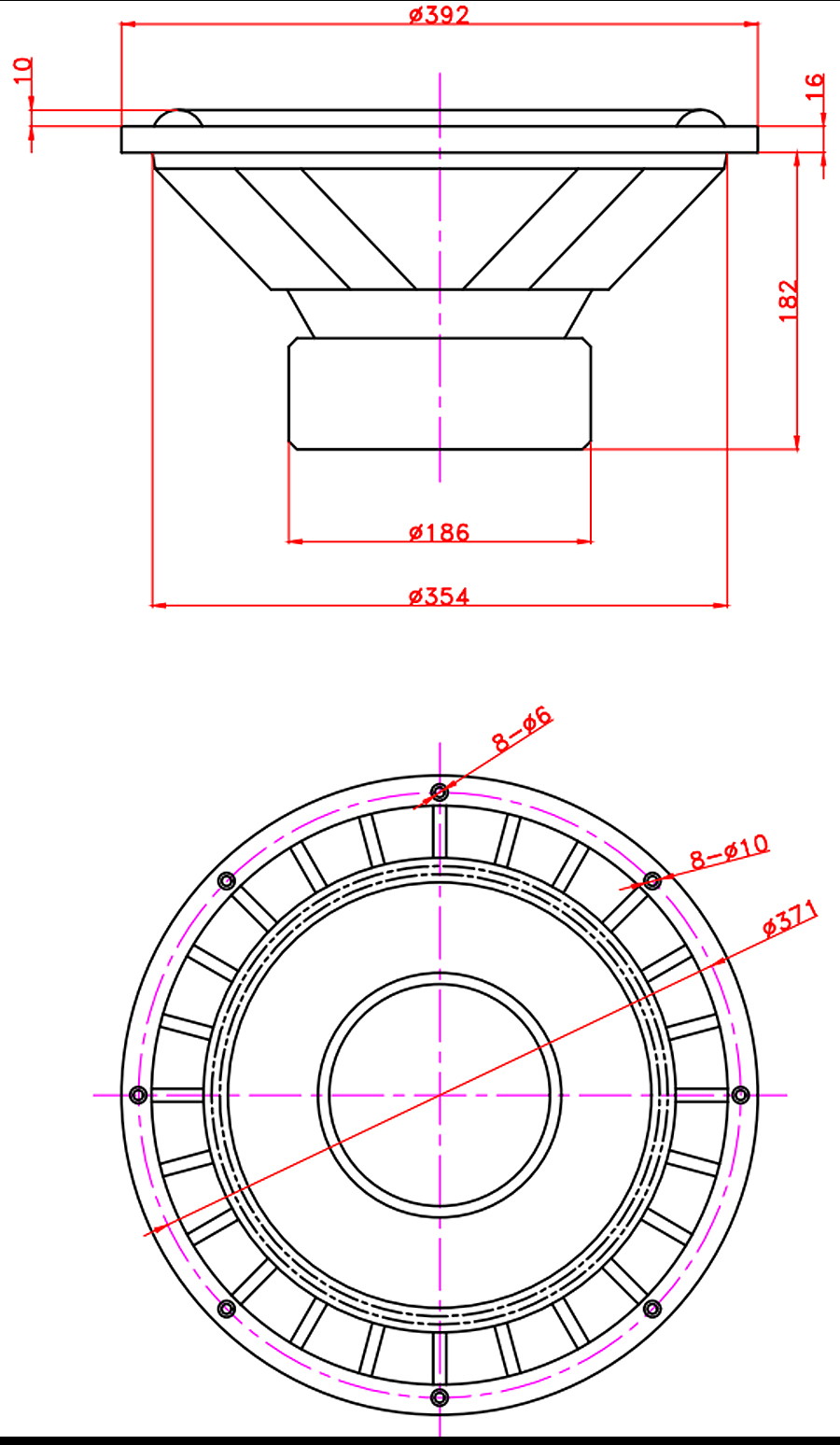

MOUNTING AND SHIPPING INFO
| Overall Diameter |
392 mm (15.43 in) |
Bolt Circle Diameter |
371 mm (14.62 in) |
| Baffle Cutout Diameter |
354.0mm(13.93 in) |
Depth |
182mm (7.16 in) |
| Flange and GasketThickness |
16 mm (0.63in) |
Net Weight |
12.5 kg (27.5 lb) |
| Shipping Units |
1 |
Shipping Weight |
14kg (30.8 lb) |
| Shipping Box |
435x435x265 mm (17.12x17.12x10.43 in) |
|
|
