P15-07 15.0 Inches Full-Range Professional Speakers

Continuous Power Handling：2000W
Nominal Power Handling：1000W
High strength steel basin frame
100MM (4inch) voice coil
Ferrite 125 OZ

Double silicone spider

45-1500 Hz Frequency Range

95.5 dB sensitivity

The P15-07 15.0 Inches Full-Range Professional Speakers are designed to reproduce a wide range of frequencies, from low bass tones to high treble notes. This allows for a more complete and immersive listening experience, as you can hear the full spectrum of sound in your music.

Installing a full-range speaker eliminates the need for separate components like woofers, midrange drivers, and tweeters. This can simplify the installation process and save space within the car interior.

Since the P15-07 15.0 Inches Full-Range Professional Speakers are built to handle all frequencies, they can provide a more coherent soundstage compared to systems with separate components. This means that vocals and instruments are more likely to appear as if they're coming from the same point in space, enhancing the overall audio quality.

Details & specifications

Construction

SPECIFICATIONS

NominaI Diameter	380MM(15")	Nominal Impedance	8 Ω
Nominal Power Handling	1000W	Continuous Power Handling	2000W
Sensitivity	96.5 dB	Winding Material	Copper
Former Material	Glass Fibre	Winding Depth	26.0 mm (1.02 in)
Magnetic Gap Depth	12.0 mm (0.5 in)	Flux Density	1.1 T

DESIGN

Surround Shape	Triple Rol	Cone Shape	Radial
Magnet Material	Ferrite	Spider	Double Silicone

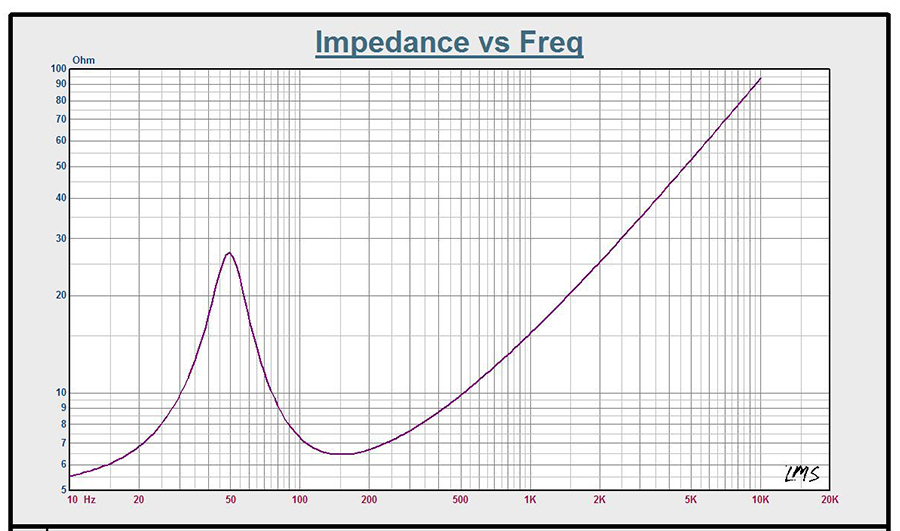

PARAMETERS

Resonance Frequency	35 Hz	Re	5.1 Ω
Qes	0.736	Qms	3.122
Qts	0.596	Vas	8.879 Ltr
Sd	934.820 cm²	η。	1.373 %
Xmax	11 MM	Mms	148.435 g
Bl	17.861 Txm

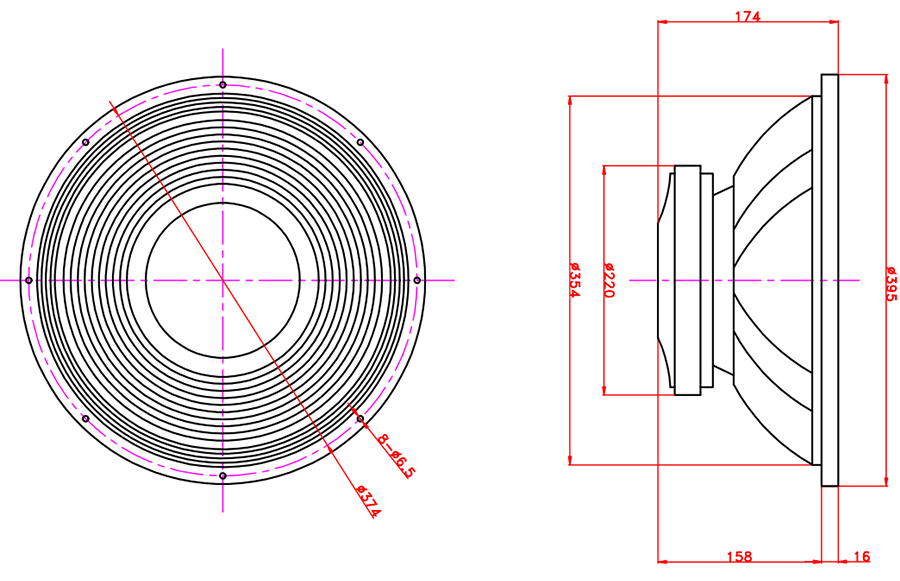

MOUNTING AND SHIPPING INFO

Overall Diameter	395 mm (15.5 in)	Bolt Circle Diameter	374 mm (14.7 in)
Baffle Cutout Diameter	354.0mm(13.9 in)	Depth	174mm (6.85 in)
Flange and GasketThickness	16 mm (0.62in)	Net Weight	11 kg (24.24 lb)
Shipping Units	1	Shipping Weight	12.2kg (263.89 lb)
Shipping Box	445x445x245 mm (17.52x17.52x9.65 in)

We are a speaker manufacturer .

Shengzhou Lianfeng Electronic is a combination of industry and trade enterprises, located in China's famous loudspeaker accessories production base "Shengzhou", our company was founded in 2001 and is famous P15-07 15.0 Inches Full-Range Professional Speakers suppliers and custom P15-07 15.0 Inches Full-Range Professional Speakers company, specializing in the production of OEM/ODM P15-07 15.0 Inches Full-Range Professional Speakers and so on. in addition, we can produce products according to your special requirements.
