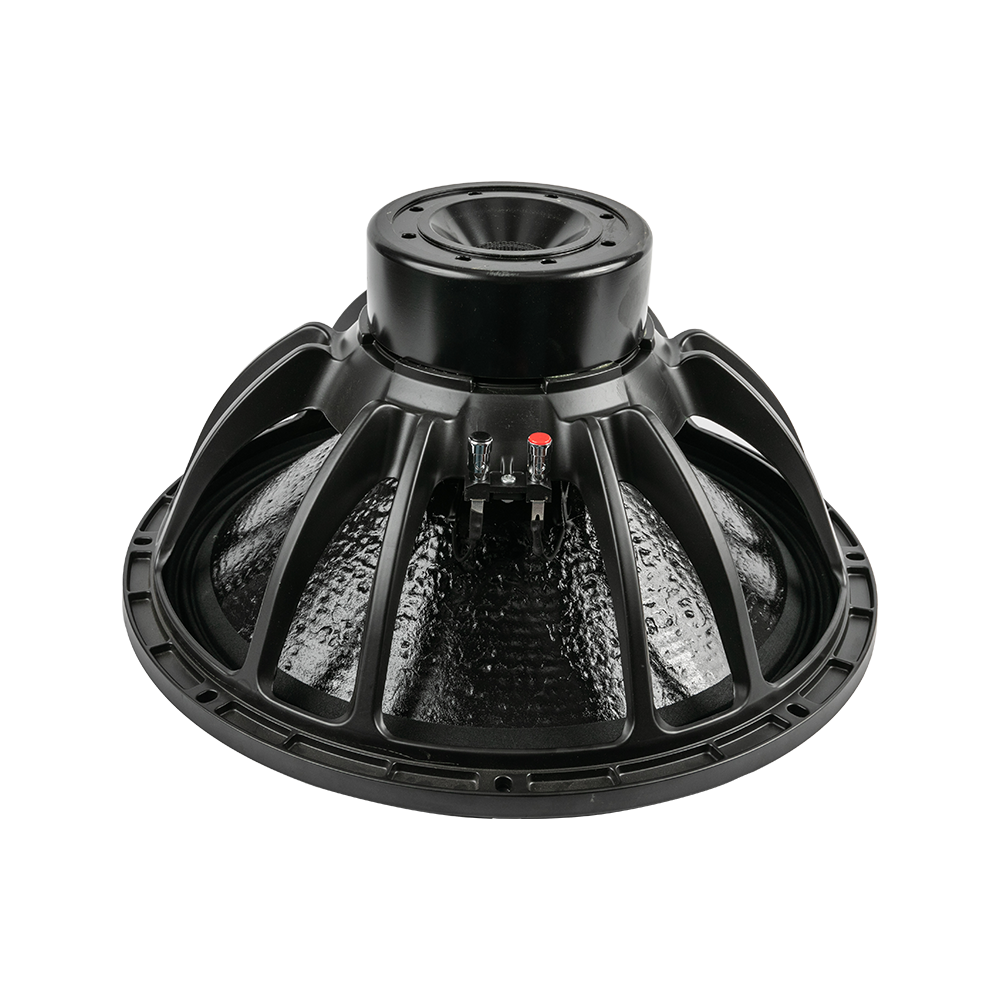

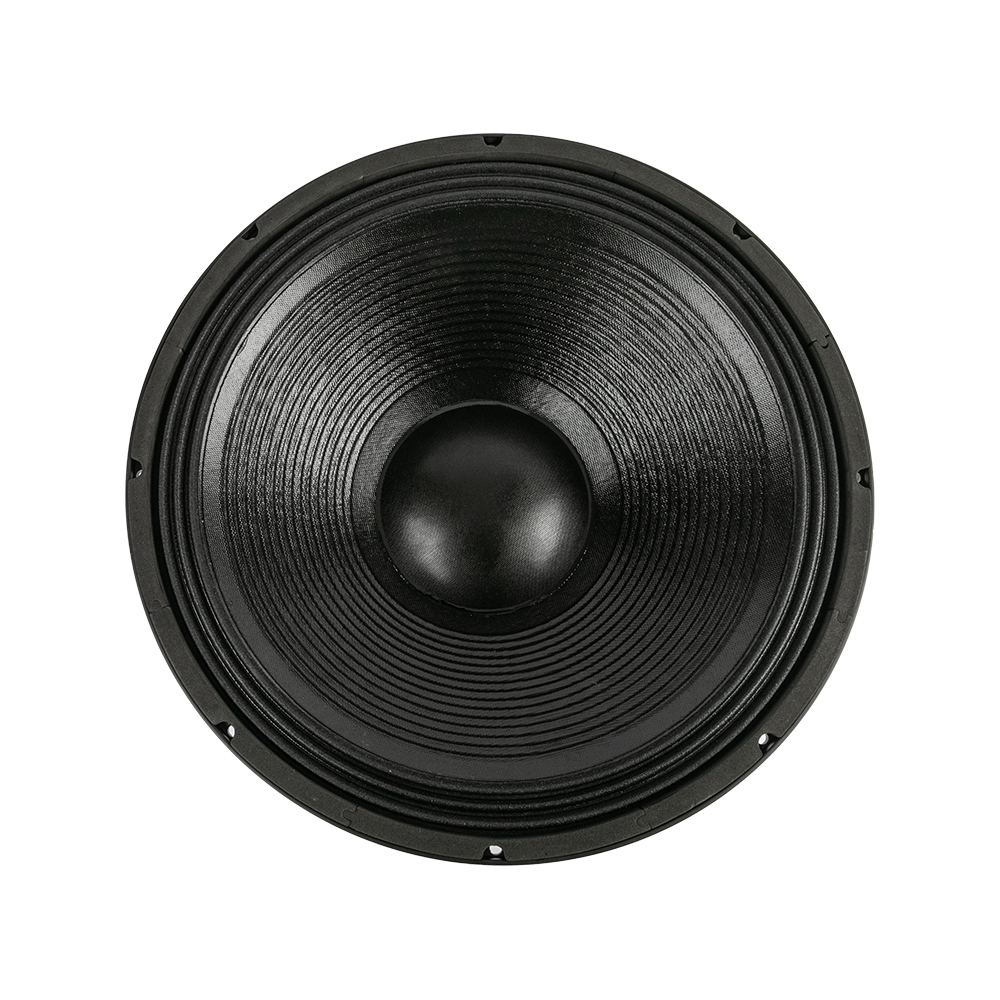

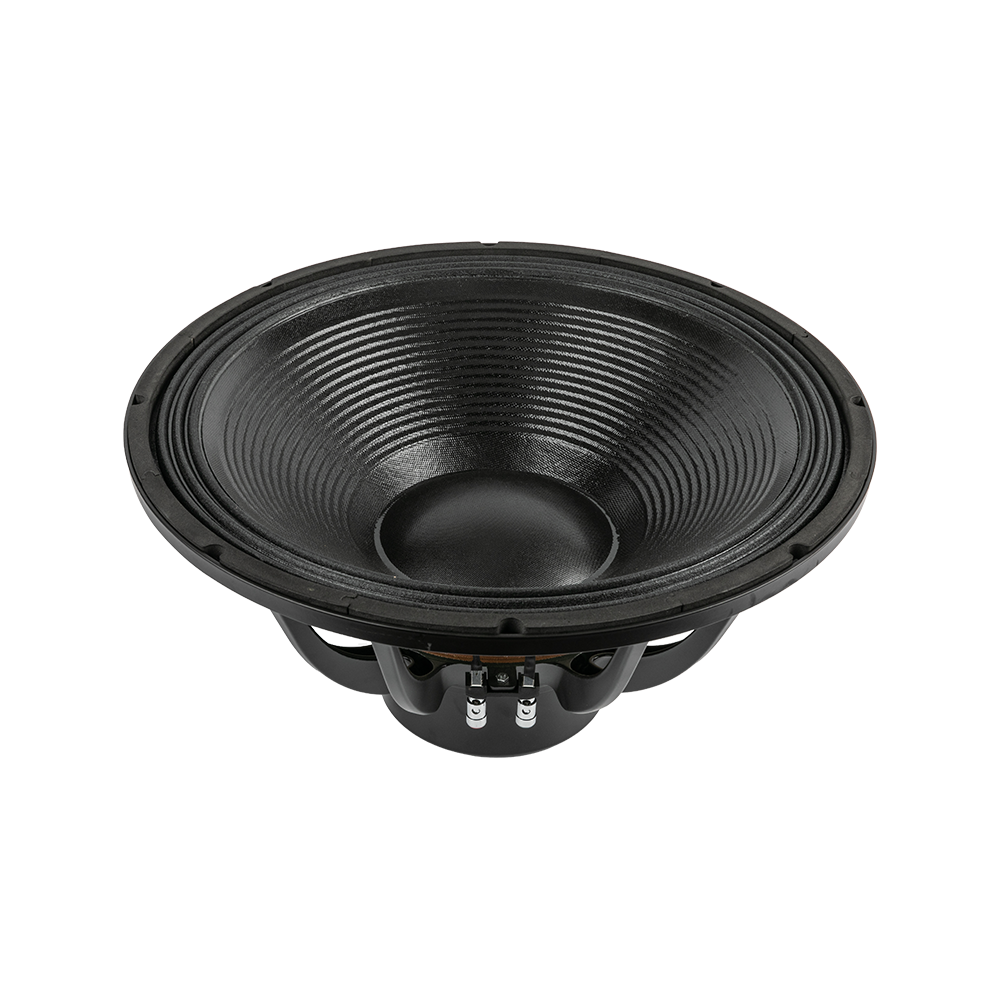

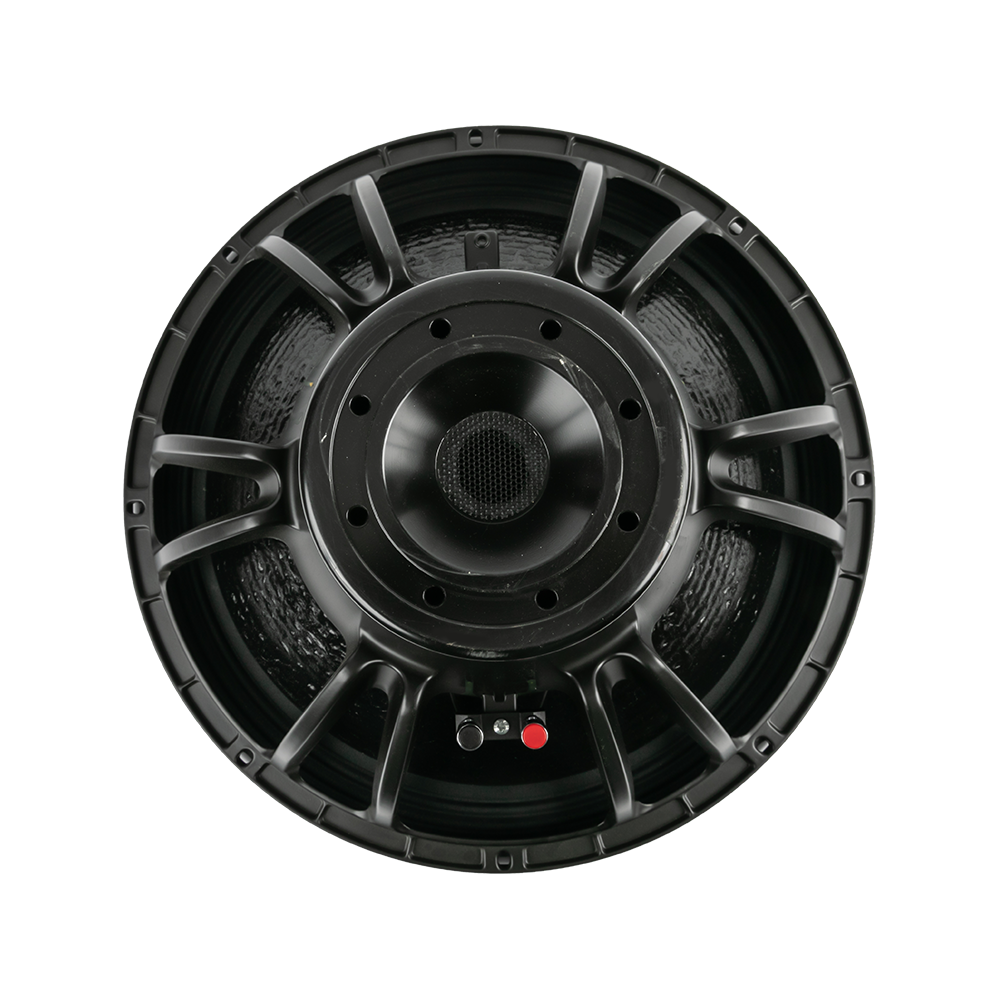

P18-01 18.0 Inche Frequency Response professional speakers

Continuous Power Handling：3400W
Nominal Power Handling：1700W
High strength aluminum basin frame
114MM (4.5 inch) voice coil
Neodymium magnetic

Double silicone spider

35-1 500 Hz Frequency Range

97 dB sensitivity

The P18-01 18.0 Inche Frequency Response professional speakers with a balanced and extended frequency response can reproduce a wide range of frequencies accurately. This means that you'll be able to hear all the details in your music, from deep bass notes to crisp high-frequency sounds, resulting in a more natural and immersive listening experience.

The P18-01 18.0 Inche Frequency Response professional speakers response allows you to experience the full spectrum of audio frequencies. This is important because different musical instruments and vocal ranges occupy different parts of the frequency spectrum. A speaker with good frequency response can reproduce these elements faithfully, leading to a richer and more complete sound.

Details & specifications

Construction

SPECIFICATIONS

NominaI Diameter	460MM(18")	Nominal Impedance	8 Ω
Nominal Power Handling	1700W	Continuous Power Handling	3400W
Sensitivity	97.0 dB	Winding Material	Copper
Former Material	Glass Fibre	Winding Depth	34.0 mm (1.33 in)
Magnetic Gap Depth	14.0 mm (0.55 in)	Flux Density	1.16 T

DESIGN

Surround Shape	Triple Rol	Cone Shape	Radial
Magnet Material	Neodymium	Spider	Double Silicone

PARAMETERS

Resonance Frequency	34.891 Hz	Re	5.1 Ω
Qes	0.371	Qms	7.031
Qts	0.353	Vas	289.912 Ltr
Sd	1320.0 cm²	η。	3.207 %
Xmax	14.5 MM	Mms	177.576 g
Bl	23.124 Txm

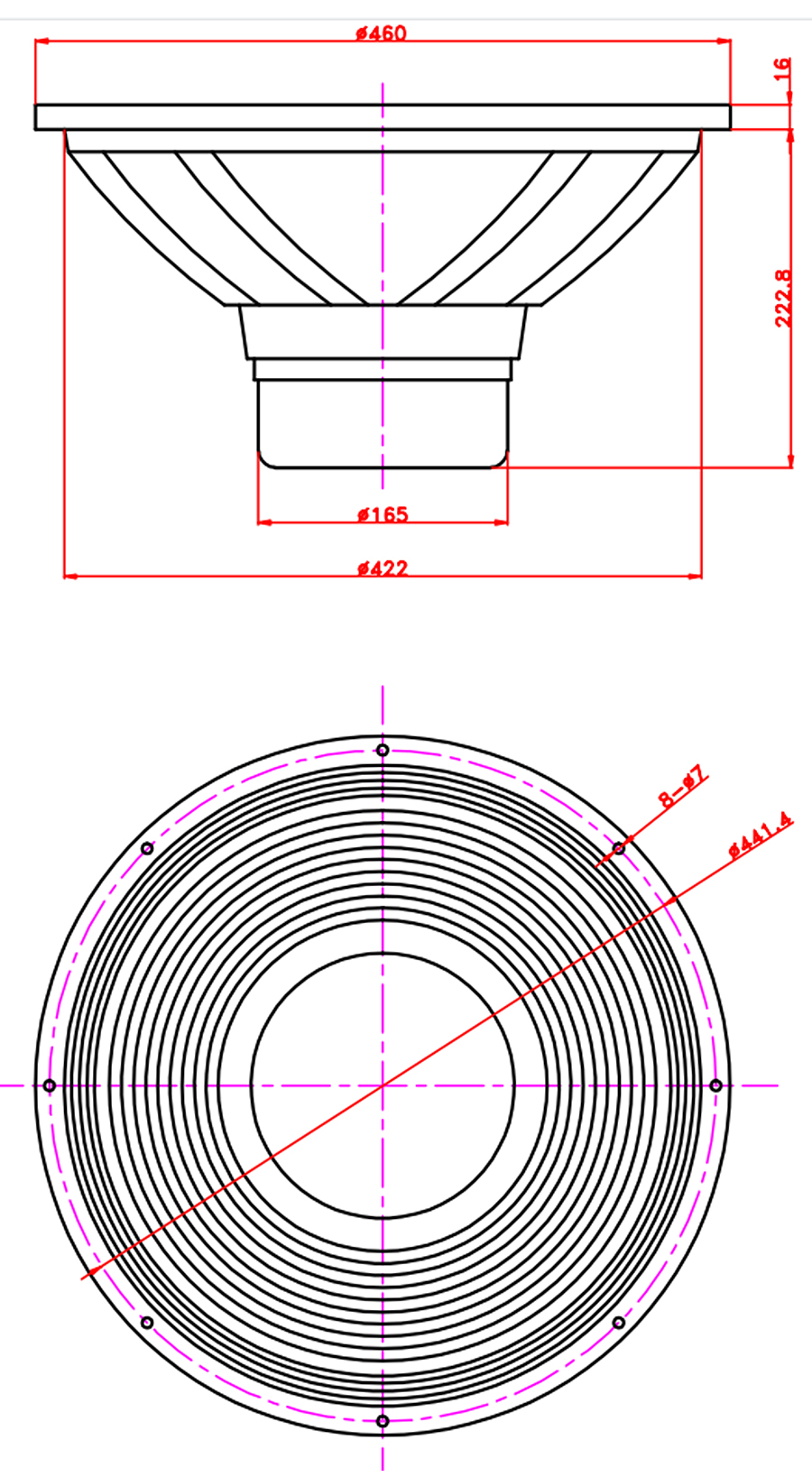

MOUNTING AND SHIPPING INFO

Overall Diameter	460 mm (18.0 in)	Bolt Circle Diameter	441 mm (17.377 in)
Baffle Cutout Diameter	422.0mm(16.6 in)	Depth	222mm (8.74 in)
Flange and GasketThickness	16 mm (0.62in)	Net Weight	11.9 kg (26.2 lb)
Shipping Units	1	Shipping Weight	13.7kg (30.2 lb)
Shipping Box	525x515x310 mm (20.669x20.275x12.2 in)
