Custom P18-02 18.0 Inche Power Handling professional speakers Suppliers, OEM/ODM Company

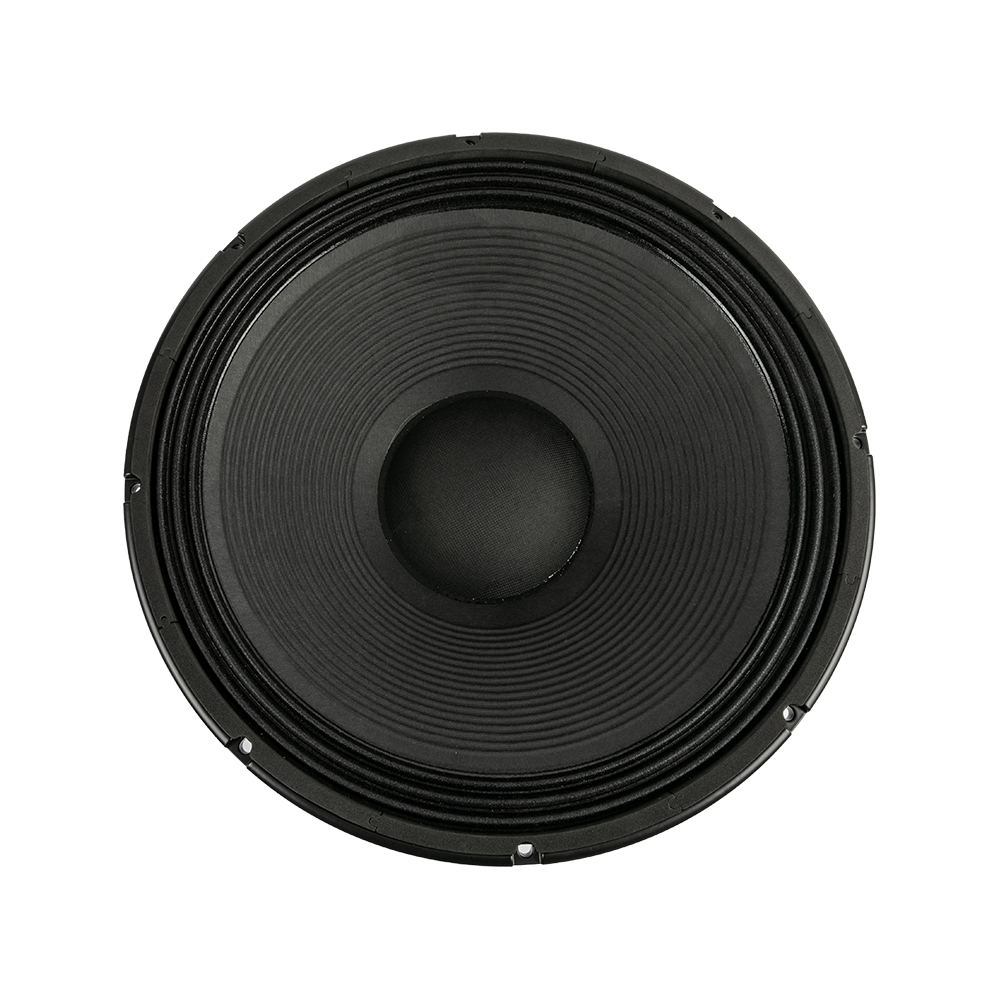

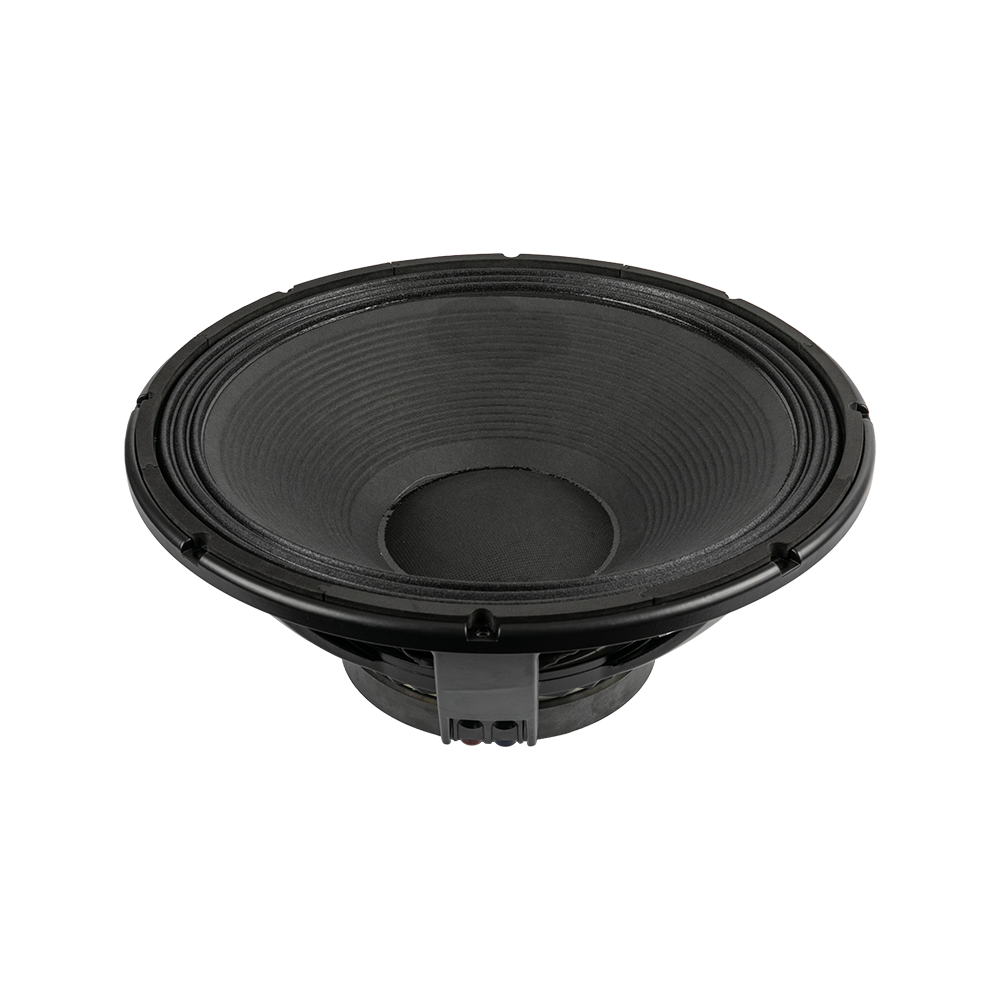

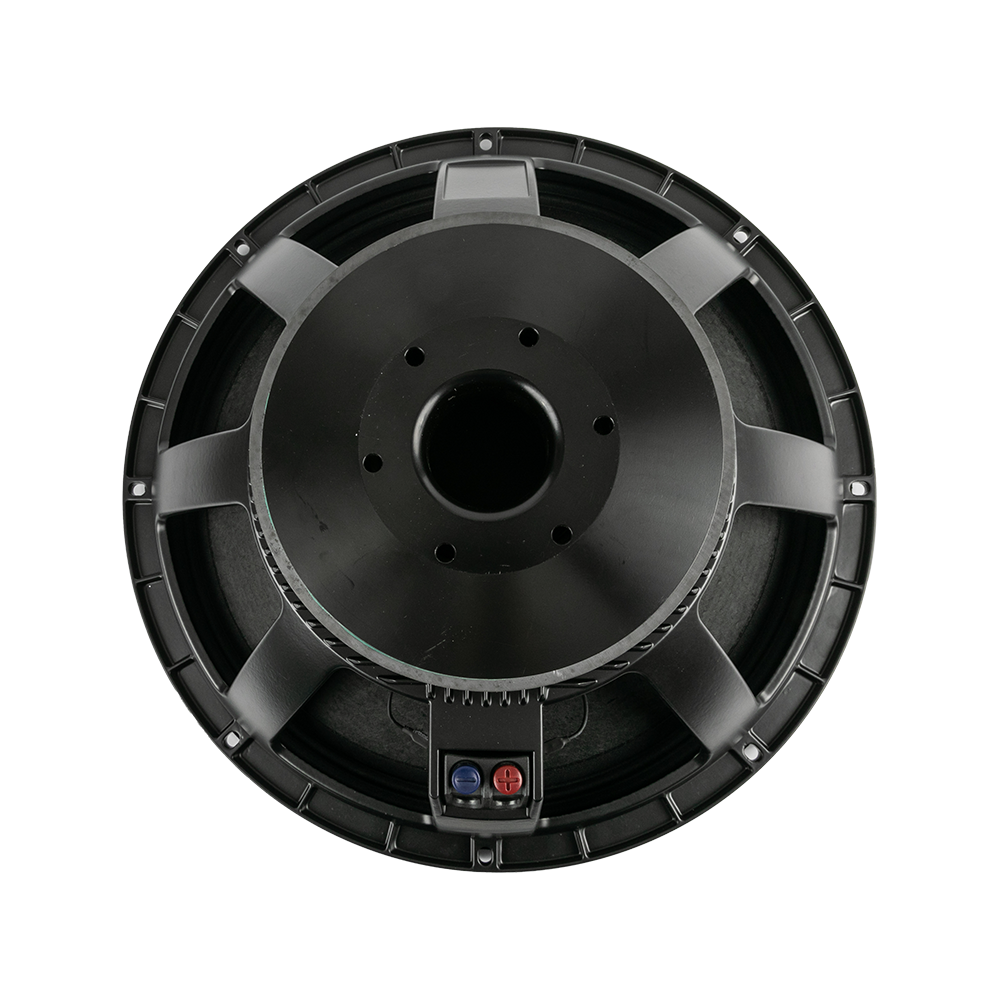

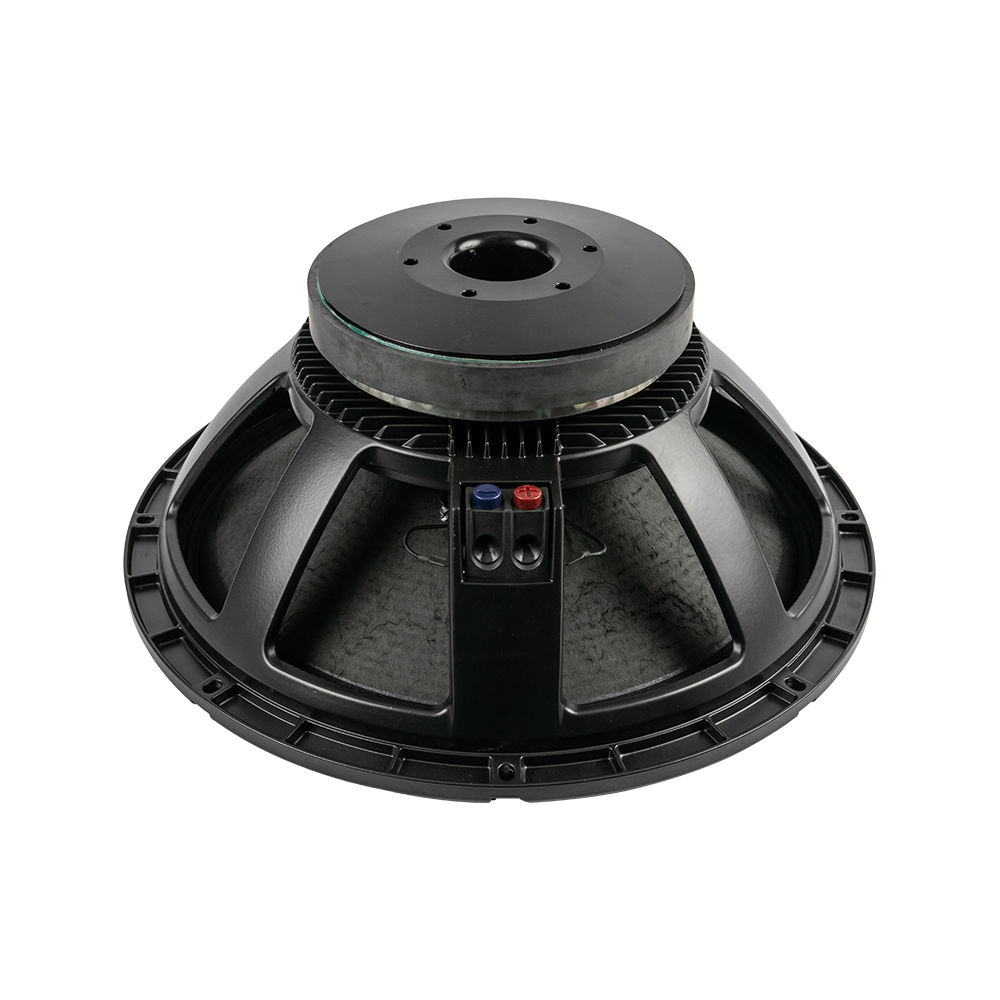

P18-02 18.0 Inche Power Handling professional speakers

Continuous Power Handling：2000W
Nominal Power Handling：1000W
High strength aluminum basin frame
100MM (4 inch) voice coil
Ferrite125 OZ

Double silicone spider

35-1000 Hz Frequency Range

96.5 dB sensitivity

Speakers with higher power handling capabilities can handle more power from the amplifier. This means the P18-02 18.0 Inche Power Handling professional speakers can play music at higher volume levels without distorting or getting damaged. This is particularly important for car audio enthusiasts who want to crank up the volume without sacrificing audio quality.

When speakers are pushed beyond their power handling limits, they can distort the sound, producing unwanted artifacts and reducing audio quality. The P18-02 18.0 Inche Power Handling professional speakers are less likely to distort, allowing for cleaner and more accurate sound reproduction even at high volumes.

P18-02 18.0 Inche Power Handling professional speakers

Details & specifications

Construction

SPECIFICATIONS

NominaI Diameter	460MM(18")	Nominal Impedance	8 Ω
Nominal Power Handling	1000W	Continuous Power Handling	2000W
Sensitivity	96.5 dB	Winding Material	Copper
Former Material	Glass Fibre	Winding Depth	26.0mm (1.02 in)
Magnetic Gap Depth	14.0 mm (0.55 in)	Flux Density	1.1 T

DESIGN

Surround Shape	Triple Rol	Cone Shape	Radial
Magnet Material	Ferrite	Spider	Double Silicone

PARAMETERS

Resonance Frequency	34.891 Hz	Re	5.1 Ω
Qes	0.607	Qms	6.132
Qts	0.552	Vas	265.634 Ltr
Sd	1353.0 cm²	η。	1.797 %
Xmax	10.5 MM	Mms	203.616 g
Bl	19.366 Txm

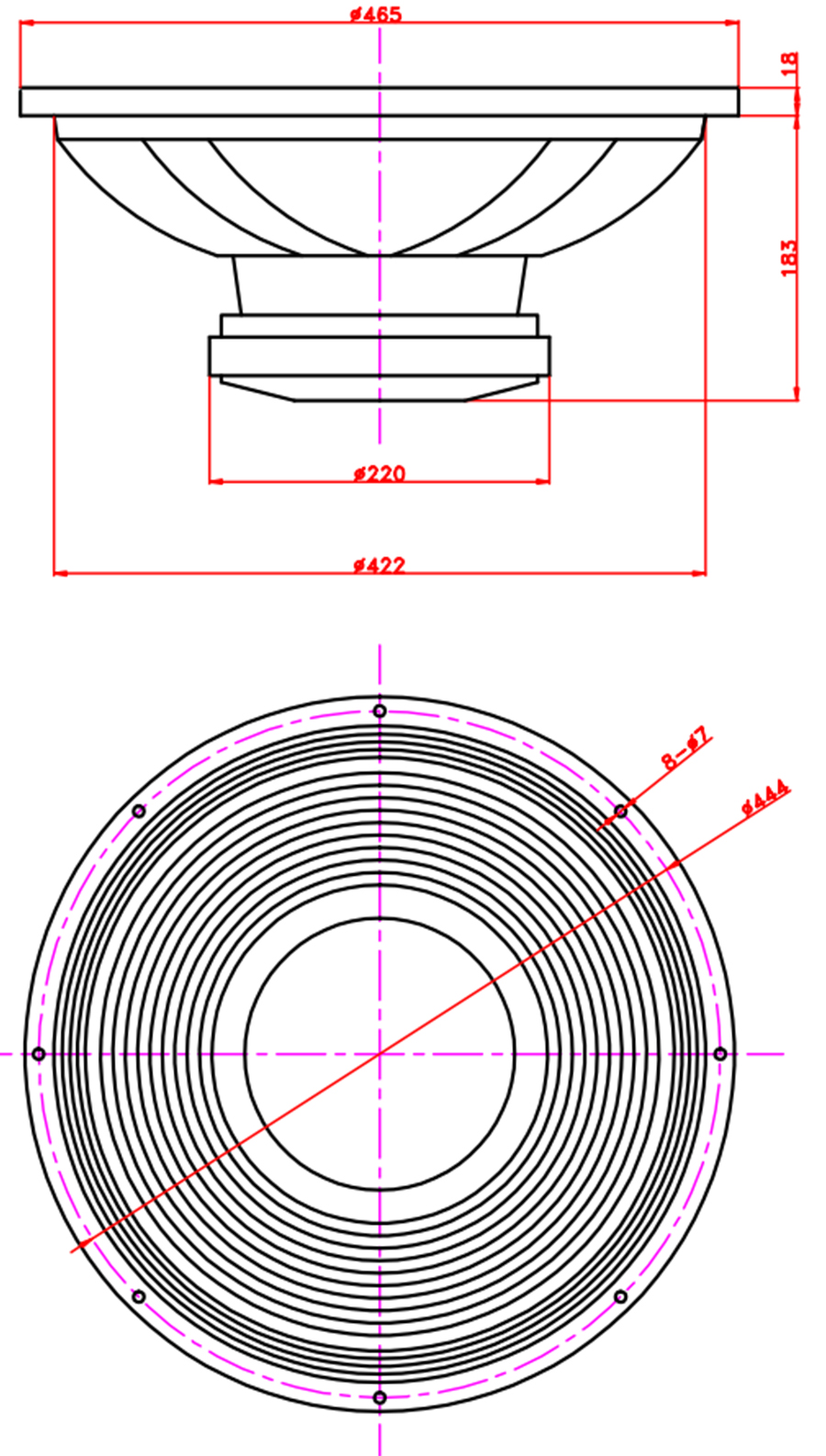

MOUNTING AND SHIPPING INFO

Overall Diameter	465 mm (18.3 in)	Bolt Circle Diameter	444 mm (17.48 in)
Baffle Cutout Diameter	422.0mm(16.6 in)	Depth	209mm (8.2 in)
Flange and GasketThickness	18 mm (0.7in)	Net Weight	12 kg
Shipping Units	1	Shipping Weight	14.2kg
Shipping Box	525x515x275 mm (20.67x20.28x10.83 in)

We are a speaker manufacturer .

Shengzhou Lianfeng Electronic is a combination of industry and trade enterprises, located in China's famous loudspeaker accessories production base "Shengzhou", our company was founded in 2001 and is famous P18-02 18.0 Inche Power Handling professional speakers suppliers and custom P18-02 18.0 Inche Power Handling professional speakers company, specializing in the production of OEM/ODM P18-02 18.0 Inche Power Handling professional speakers and so on. in addition, we can produce products according to your special requirements.
