P18-08 18.0 Inche Surround professional speakers

Continuous Power Handling：2000W
Nominal Power Handling：1000W
High strength aluminum basin frame
100MM (4 inch) voice coil
Ferrite125 OZ

Double silicone spider

35-1000 Hz Frequency Range

97 dB sensitivity

The P18-08 18.0 Inche Surround professional speakers are designed to create an immersive audio experience by distributing sound throughout the car cabin. This allows listeners to feel like they are enveloped by the music, providing a more realistic and enjoyable listening experience.

The P18-08 18.0 Inche Surround professional speakers help recreate the spatial accuracy of the original recording. This means that instruments and vocals are placed more precisely within the soundstage, providing a more lifelike representation of the music.

Surround speakers can reproduce a wider range of frequencies and nuances in the audio, resulting in improved detail and clarity. This is particularly important for people who want to hear every instrument and vocal with exceptional clarity.

Details & specifications

Construction

SPECIFICATIONS

NominaI Diameter	460MM(18")	Nominal Impedance	8 Ω
Nominal Power Handling	1000W	Continuous Power Handling	2000W
Sensitivity	97 dB	Winding Material	Copper
Former Material	Glass Fibre	Winding Depth	26.0mm (1.02 in)
Magnetic Gap Depth	14.0 mm (0.55 in)	Flux Density	1.1 T

DESIGN

Surround Shape	Triple Rol	Cone Shape	Radial
Magnet Material	Ferrite	Spider	Double Silicone

PARAMETERS

Resonance Frequency	34.891 Hz	Re	5.1 Ω
Qes	0.607	Qms	6.132
Qts	0.552	Vas	265.634 Ltr
Sd	1353.0 cm²	η。	1.797 %
Xmax	10.5 MM	Mms	203.616 g
Bl	19.366 Txm

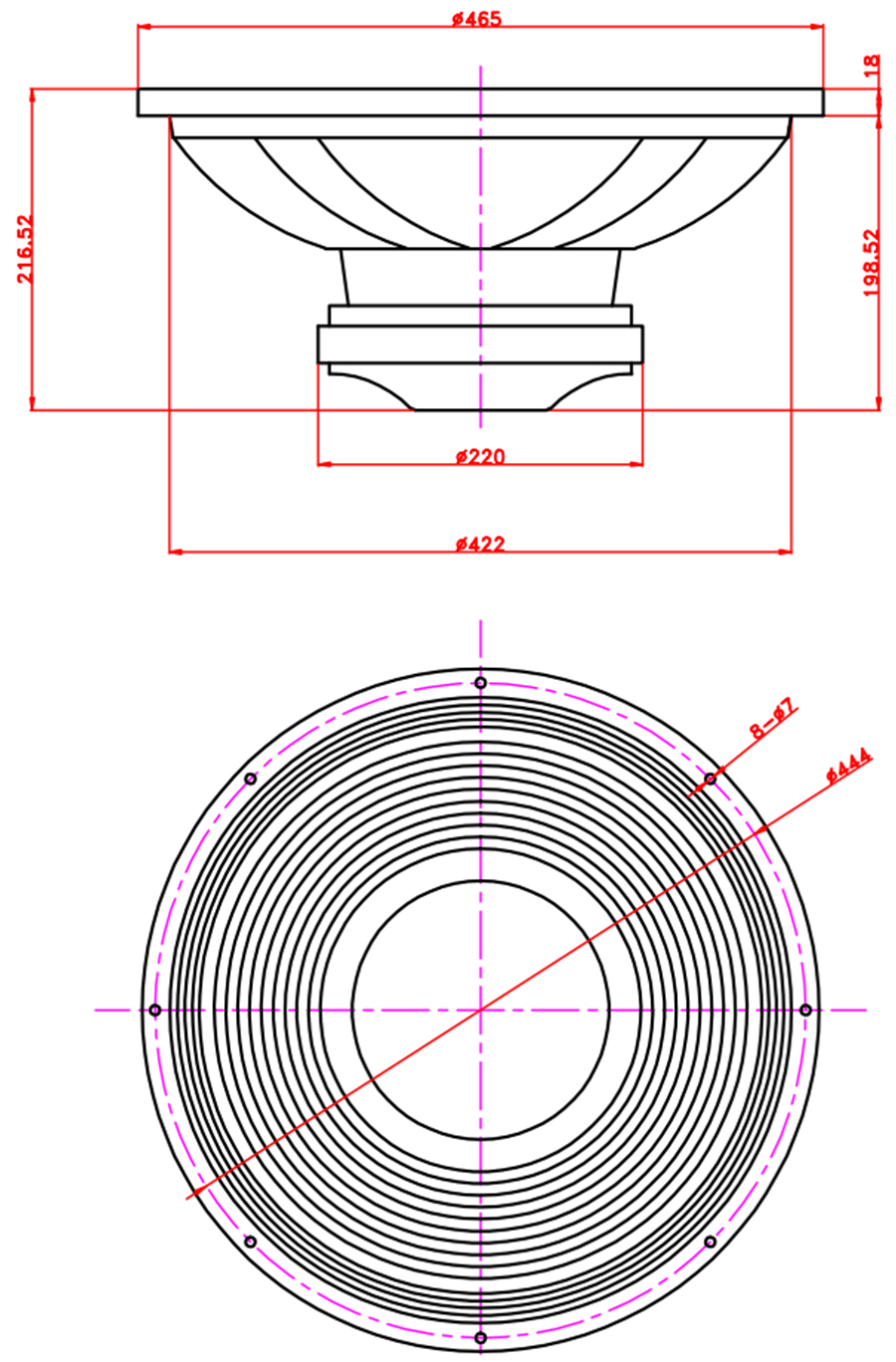

MOUNTING AND SHIPPING INFO

Overall Diameter	465 mm (18.3 in)	Bolt Circle Diameter	444 mm (17.48 in)
Baffle Cutout Diameter	422.0mm(16.6 in)	Depth	216mm (8.5 in)
Flange and GasketThickness	18 mm (0.70 in)	Net Weight	13.5 kg
Shipping Units	1	Shipping Weight	15.5kg
Shipping Box	525x515x275 mm (20.67x20.28x10.83 in)

We are a speaker manufacturer .

Shengzhou Lianfeng Electronic is a combination of industry and trade enterprises, located in China's famous loudspeaker accessories production base "Shengzhou", our company was founded in 2001 and is famous P18-08 18.0 Inche Surround professional speakers suppliers and custom P18-08 18.0 Inche Surround professional speakers company, specializing in the production of OEM/ODM P18-08 18.0 Inche Surround professional speakers and so on. in addition, we can produce products according to your special requirements.
