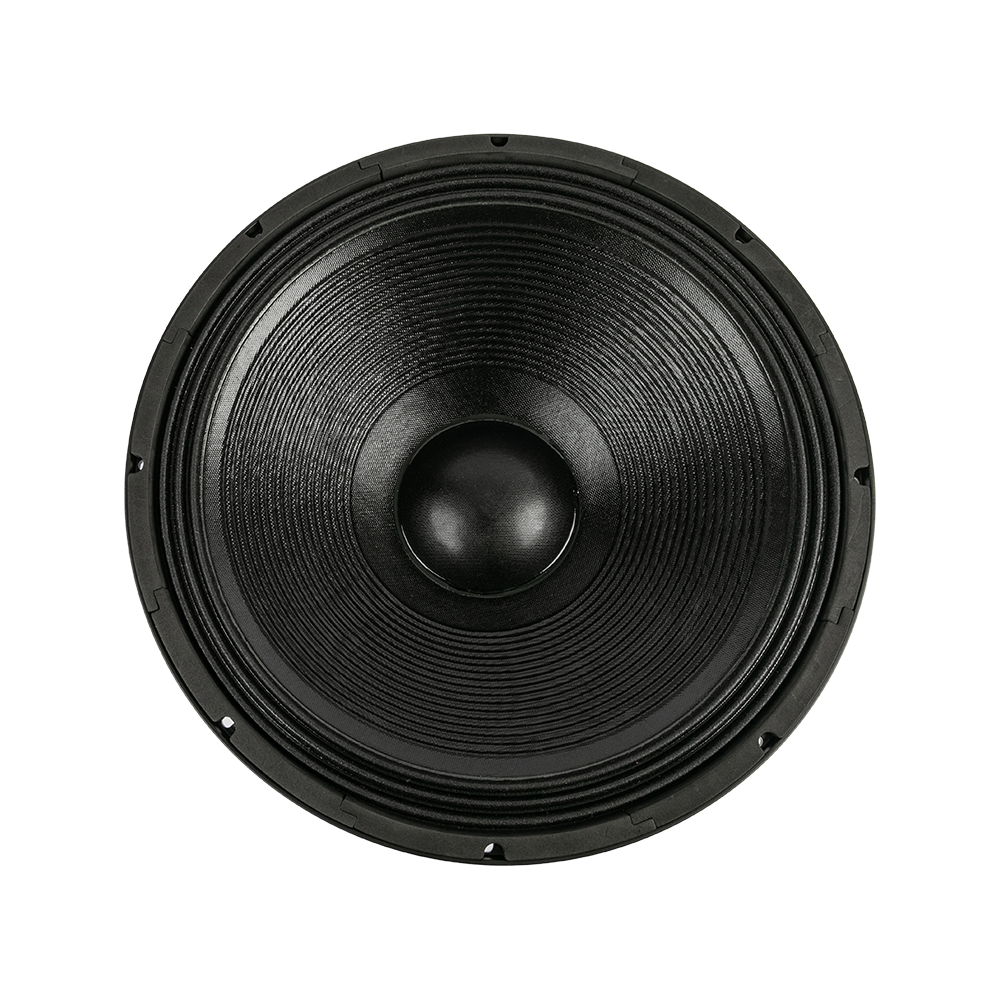

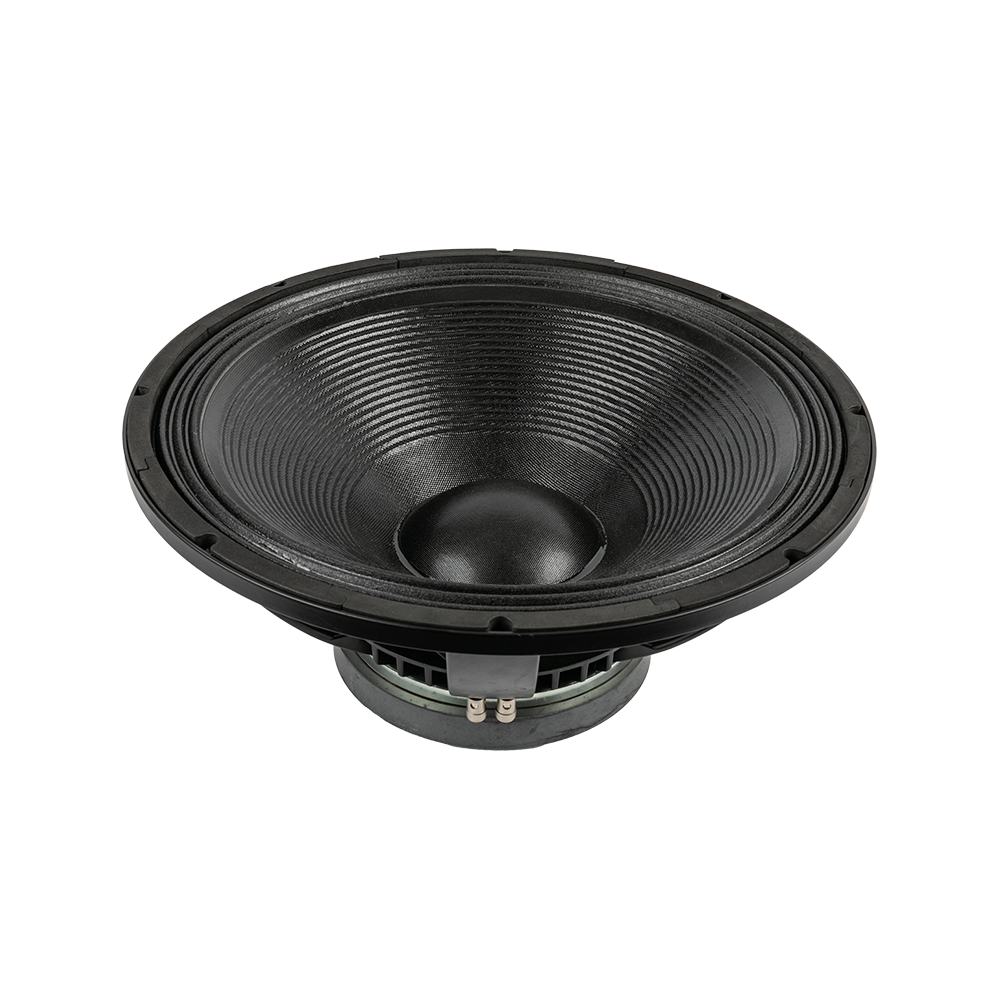

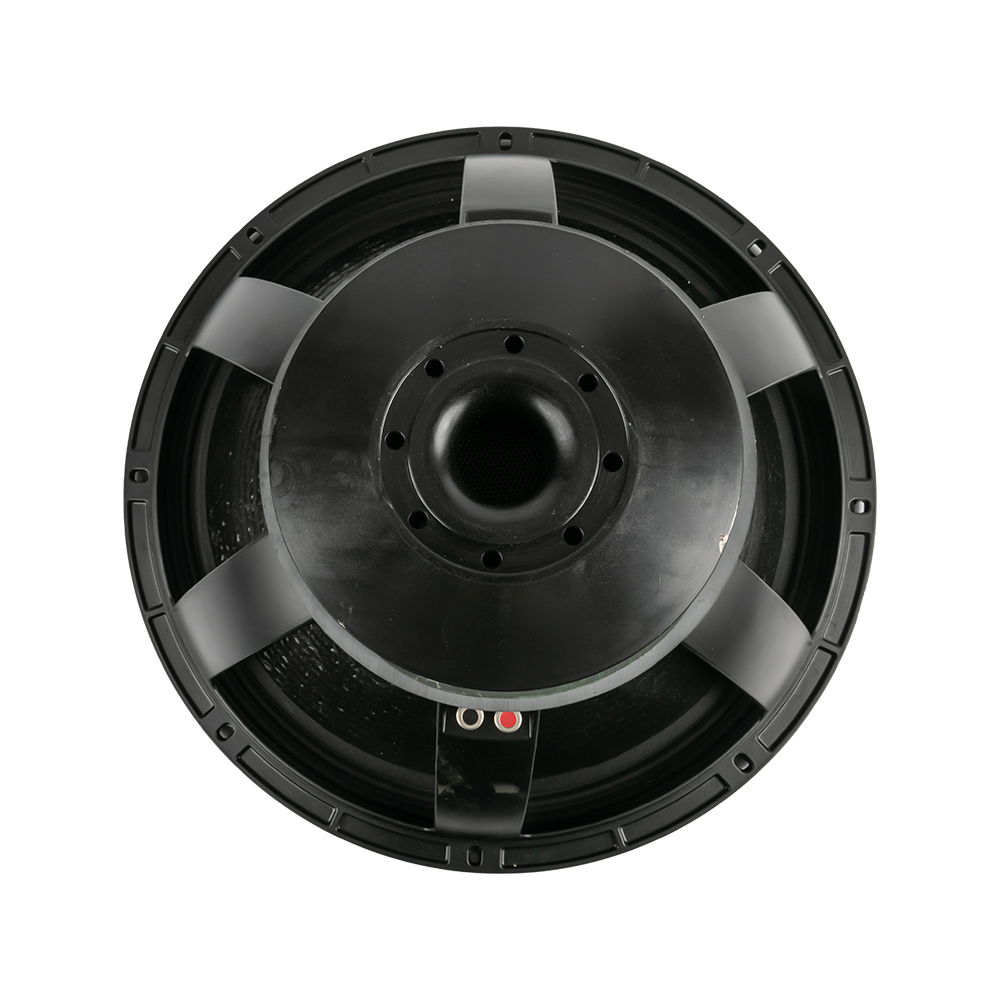

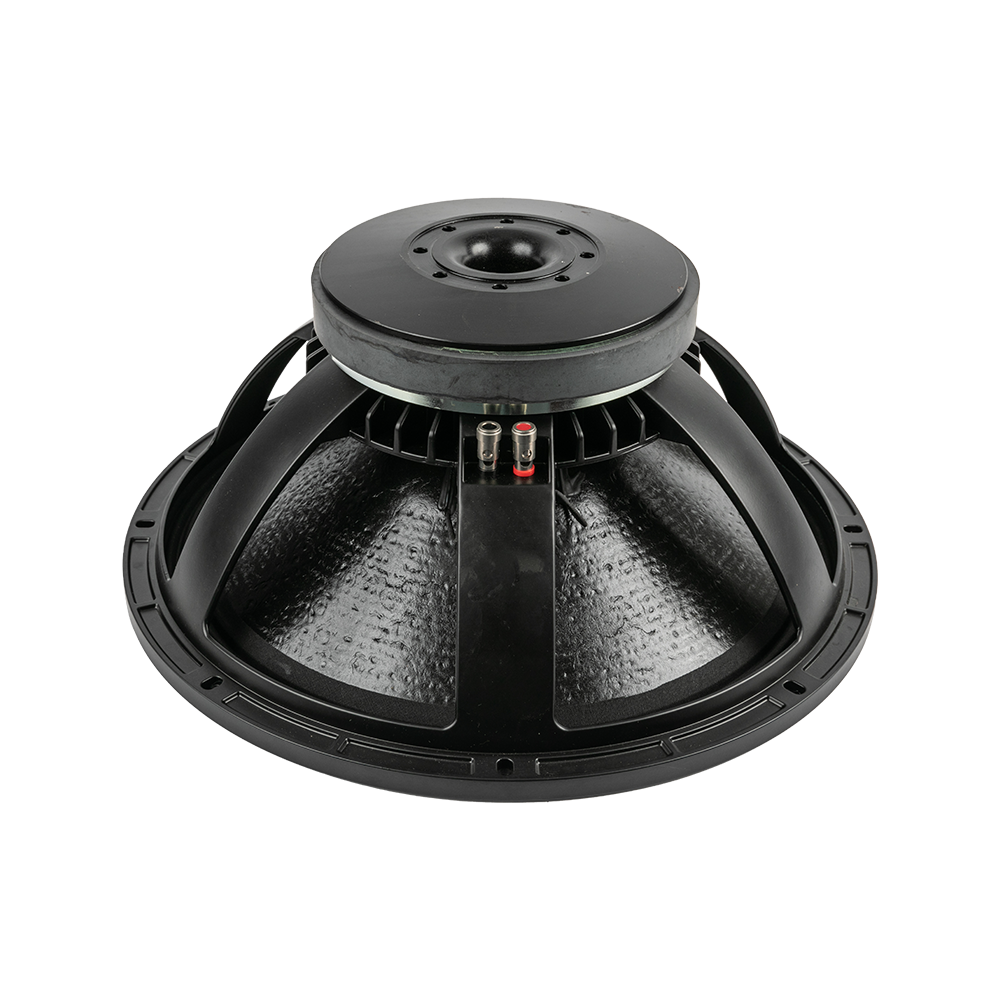

P18-09 18.0 Inche Bass-Emphasized professional speakers

Continuous Power Handling：2000W
Nominal Power Handling：1000W
High strength aluminum basin frame
100MM (4 inch) voice coil
Ferrite125 OZ

Double silicone spider

35-1000 Hz Frequency Range

97 dB sensitivity

The P18-09 18.0 Inche Bass-Emphasized professional speakers are specifically designed to reproduce low-frequency sounds more accurately and powerfully. This leads to a richer and more immersive audio experience.

Adding a subwoofer to your car audio system helps balance the audio output across different frequency ranges. This prevents the main speakers from struggling to reproduce deep bass, which can lead to distortion and reduced overall sound quality. By offloading the low-frequency reproduction to a dedicated subwoofer, the main speakers can focus on producing mid-range and high-frequency sounds more effectively.

The P18-09 18.0 Inche Bass-Emphasized professional speakers can provide a fuller and more well-rounded sound experience by adding depth and dimension to the audio.

Details & specifications

Construction

SPECIFICATIONS

NominaI Diameter	460MM(18")	Nominal Impedance	8 Ω
Nominal Power Handling	1000W	Continuous Power Handling	2000W
Sensitivity	97.0 dB	Winding Material	Copper
Former Material	Glass Fibre	Winding Depth	26.0mm (1.02 in)
Magnetic Gap Depth	12.0 mm (0.5 in)	Flux Density	1.1 T

DESIGN

Surround Shape	Triple Rol	Cone Shape	Radial
Magnet Material	Ferrite	Spider	Double Silicone

PARAMETERS

Resonance Frequency	34 Hz	Re	5.1 Ω
Qes	0.37	Qms	7.2
Qts	0.35	Vas	212.0 dm3 (7.5 ft3)
Sd	1210.0 cm2 (187.6 in²)	η。	2.2%
Xmax	10 MM	Mms	209.0 g
Bl	25.5 Txm

MOUNTING AND SHIPPING INFO

Overall Diameter	460 mm (18.0 in)	Bolt Circle Diameter	440 mm (17.3 in)
Baffle Cutout Diameter	422.0mm(16.6 in)	Depth	209mm (8.2 in)
Flange and GasketThickness	16 mm (0.62 in)	Net Weight	11.5kg (25.3 lb)
Shipping Units	1	Shipping Weight	13.2 kg (30.2 lb)
Shipping Box	500x500x280 mm (19.69x19.69x11.03 in)

We are a speaker manufacturer .

Shengzhou Lianfeng Electronic is a combination of industry and trade enterprises, located in China's famous loudspeaker accessories production base "Shengzhou", our company was founded in 2001 and is famous P18-09 18.0 Inche Bass-Emphasized professional speakers suppliers and custom P18-09 18.0 Inche Bass-Emphasized professional speakers company, specializing in the production of OEM/ODM P18-09 18.0 Inche Bass-Emphasized professional speakers and so on. in addition, we can produce products according to your special requirements.
